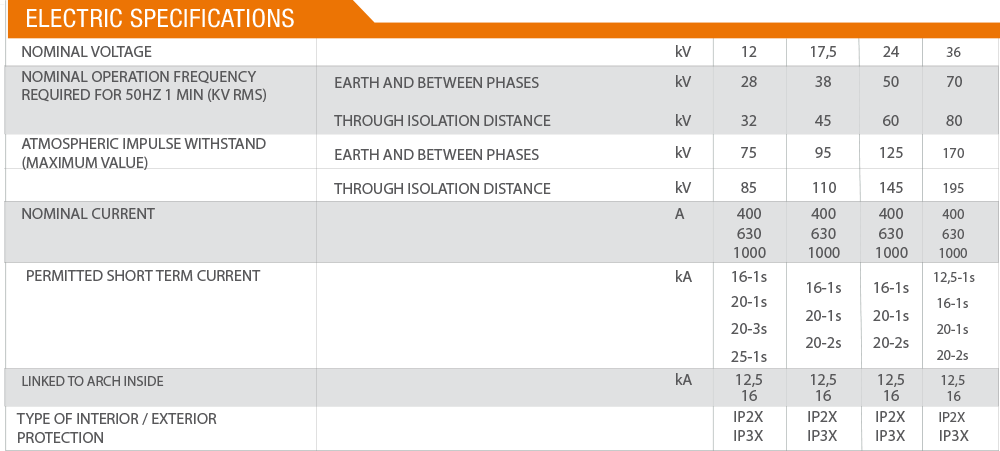

Sarel SYStem6 - Italy are medium voltage switchboards up to 36 KV and it’s models are composed by modular panels metal-enclosed type, equipped with SF6 insulated on-load switches and vacuum circuit breaker.

AS.RS

AS  Incoming cable

RS Bus riser

Basic equipment:

Bus bars
Low voltage auxiliary compartment
Cables for riser

Optional accessories:

Voltage indicators

AT

Incoming with earth switch

Basic equipment:

Bus bars
Earth switch ST6
Voltage indicators
Low voltage auxiliary compartment
Heater resistance with thermostat

Optional accessories:

Key locks

ITB

Reverse feeder with vacuum circuit breaker CT and indirect relay

ITI

Feeder with vacuum circuit breaker with CT and indirect relay

Basic equipment:

Bus bars
On-load switch IM6SC-TD
KS operating mechanism
Automatic circuit breaker with tripping coil
Earth switch at the top and the bottom of the circuit breaker
Voltage indicators
3 current transformers
Microprocessor secondary protection
Heater resistance with thermostat
Low voltage auxiliary compartment

Optional accessories:

Auxiliary contacts
Key locks
Motor operating mechanism for automatic circuit breaker
3 voltage transformers

Basic equipment:

Bus bars
On-load switch IM6S-TD
KS operating mechanism
Automatic circuit breaker with tripping coil
Earth switch at the top and the bottom of the circuit breaker
Voltage indicators
3 current transformers
Microprocessor secondary protection
Heater resistance with thermostat
Low voltage auxiliary compartment

Optional accessories:

Auxiliary contacts
Key locks
Motor operating mechanism for automatic circuit breaker

MV

Metering with VT

Basic equipment:

Bus bars
On-load switch IM6S-F
KS operating mechanism
3 fuse bases with fuses MV side
3 voltage transformers
Heater resistance with thermostat
Low voltage auxiliary compartment

Optional accessories:

Auxiliary contacts
Terminal set for seal

MAS

Metering with CT, VT and switch

Basic equipment:

Bus bars Bus bars
On-load switch IM6S-TF
KS operating mechanism
3 fuse bases with fuses MV side
3 voltage transformers
3 current transformers
Heater resistance with thermostat
Low voltage auxiliary compartment

Optional accessories:

Auxiliary contacts
Terminal set for seal

TM

Feeder with on-load switch-fuse

ITD

Feeder with vacuum circuit breaker with CT and self-powered relay

Basic equipment:

Bus bars
On-load switch-fuse IM6P-TF
KP operating mechanism
Tripping coil (KP operating mechanism)
Automatic tripping device when fuse blow-up
3 striker fuses
Earth switch at the top and at the bottom of the fuses
Voltage indicators
Low voltage auxiliary compartment
Heater resistance with thermostat

Optional accessories:

KS operating mechanism
Auxiliary contacts
Auxiliary contacts for fuse blow-up
Key locks

Basic equipment:

Bus bars
On-load switch IM6-TD
KS operating mechanism
Automatic circuit breaker with integrated protection and tripping coil
3 current transformers
Earth switch at the top and the bottom of the circuit breaker
Voltage indicators
Heater resistance with thermostat
Low voltage auxiliary compartment

Optional accessories:

Auxiliary contacts
Key locks
Motor operating mechanism for automatic circuit breaker
